Máy phân tích BOD trực tuyến BODG-3063
Liên hệ
BODG-3063
OEM, ODM, Tùy chỉnh
Trung Quốc
7-10 ngày làm việc
1 CÁI
T/T, L/C, Paypal, Công Đoàn Phương Tây, MoneyGram, AliPay
Description

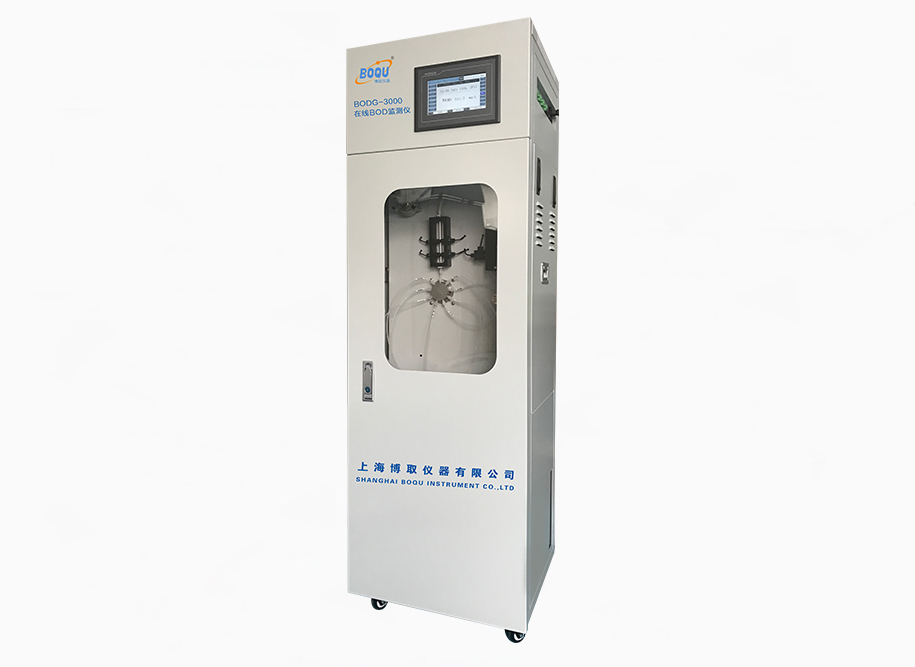

BODG-3063 ONLINE BOD ANALYZER
The BODG-3063 Online BOD analyzer produced by BOQU Instrument.it’s widely used in industrial, electric power, agriculture, medicine, food, scientific research and environmental protection. The instrument is also an essential inspection equipment in the food factory, drinking water factory QS, HACCP certification.BOD(Biochemical Oxygen Demand) is an environmental monitoring indicator used to monitor the pollution of organic matter in water. Generally, organic matter can be decomposed by microorganisms, but microorganisms need to consume oxygen when decomposing organic compounds in water. If the dissolved oxygen in the water is insufficient to supply microorganisms, the water is in a state of pollution. BOD is an indicator of environmental protection.
Principle:
The mixed liquid of Water sample, potassium dichromate solution, mercury sulfate , silver sulfate solution is heated upt to 165 ° C. The color of the organic substance in the dichromate ion oxidizing solution changes. The BODG-3063 online BOD analyzer detects the change in the color and converts the change into BOD value.The amount of dichromate ions consumed is equivalent to the amount of oxidizable organic matter.
BODG-3063 Online BOD Analyzer
Standard
Potassium dichromate
Measuring range
10-1500 mg/L BOD(customized if over range)
Accuracy
≤±10% when ≥50mg/L; ≤±5mg/L when ＜50mg/L
Repeatability
≤±5% or ±5mg/L
Stability
≤±10% in 24 hours
Measurement period
The minimum measurement period is 50 minutes, according to the actual water sample, The digestion time can be modified from 5 to 120 minutes.
Sampling period
Time interval(55~9999min adjustable by yourself) and Integral time measurement mode;
Calibration period
Adjustable in 1~99days;
Maintenance period
Usually one time per month and 30 minutes each time
Output
4~20mA( 2 ways) RS232,RS485
It should be indoor and temperature can be adjustable. The recommend temperature is +5~28℃;humidity≤90%（no dew）
Power
AC220±10% V，50±10% Hz，5 A;
Dimension size
Height 1450×Width510×Length 450 mm;
Data saved
The data can be saved when abnormal alarms and power off.
Display
Touch screen and Command Input
Other
When Reset after abnormal alarm and power on after off, the instrument automatically discharges residual reactants in the instrument and automatically resumes working status.
